LF Power Amplifier /Generator

Output Power:50W-10KW

Frequency Range:10KHz-20MHz

Application:Ultrasonic,Plasma,Medical,Biology, Electromagnetic,Test and Research…

Main Feature:1-Adjustable Gain, 2-Internal signal source and external source


  • Description and Feature
  • Specification

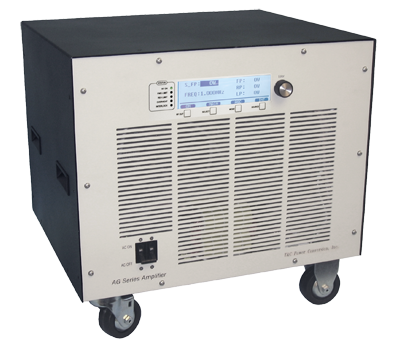

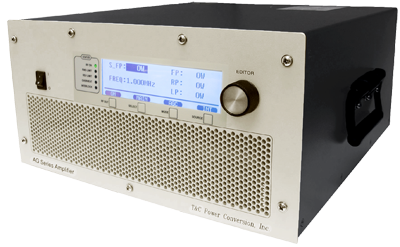

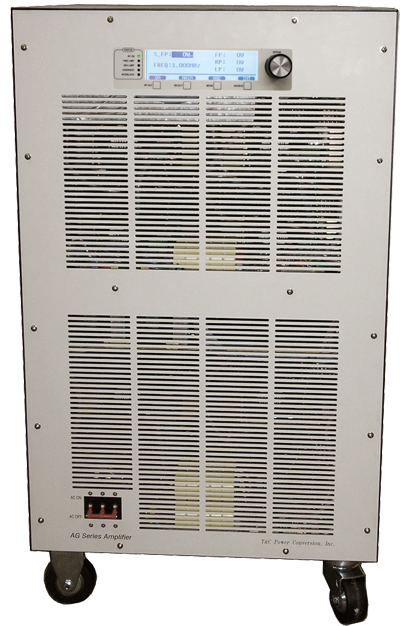

    1.png  2.png 3.png 3.png

    LF Power Amplifier/Generator

    RF Power Amplifier/Generator

    Broadband Power Source


    Gain complete control of your application with your RF Power Source


    Enhanced user-friendliness

    Control RF with 3 interface options

    Control operation with profiles including sweeping,pulsing,ramping,external burst

    Configure all power & frequency parameters

    Get up and running in no time,with T&C’s outstanding support always by your side


    Solid state design in all RF amplifier stages and a built in DDS signal source,it provides everything for a complete and reliable,finely controlled RF power delivery system.

    Front panel offers a LCD display of ForwarPower,ReflectedPower,LoadPower,Temperature and Frequency.It can adjust the Frequency,Gain and Output power by using the Edit Knob on the front board.It is compatible with most signal and function generators,computer synthesizer cards and it accurately reproduces all waveforms.




    LF Power Amplifier/Generator

    Model

    Output Power

    Frequency Range

    Size(H*W*L,mm)

    Weight

    Class-A

    AG1020

    200W

    10KHz – 20MHz

    135*254*385

    12kg

    AG1021

    300W

    10KHz – 20MHz

    135*254*385

    12kg

    AG1017L

    500W

    20KHz – 4MHz

    178*363*388

    25kg

    AG1019

    500W

    10KHz – 15MHz

    178*363*388

    25Kg

    AG1015

    1000W

    10KHz – 6MHz

    405*520*470

    59kg

    Class-AB

    AG1006

    300W

    20KHz – 15MHz

    135*254*385

    12kg

    AG1007

    300W

    10KHz – 12MHz

    135*254*385

    12kg

    AG1014

    600W

    10KHz – 10MHz

    135*254*385

    12kg

    AG1016

    600W

    20KHz – 12MHz

    135*254*385

    12kg

    AG1010

    1000W

    10KHz – 10MHz

    178*363*388

    25kg

    AG1012

    1000W

    20KHz – 8MHz

    178*363*388

    25kg

    AG1024

    2000W

    10KHz – 3MHz

    533*520*470

    71kg

    AG1048

    4000W

    10KHz – 3MHz

    927*533*520

    136kg
